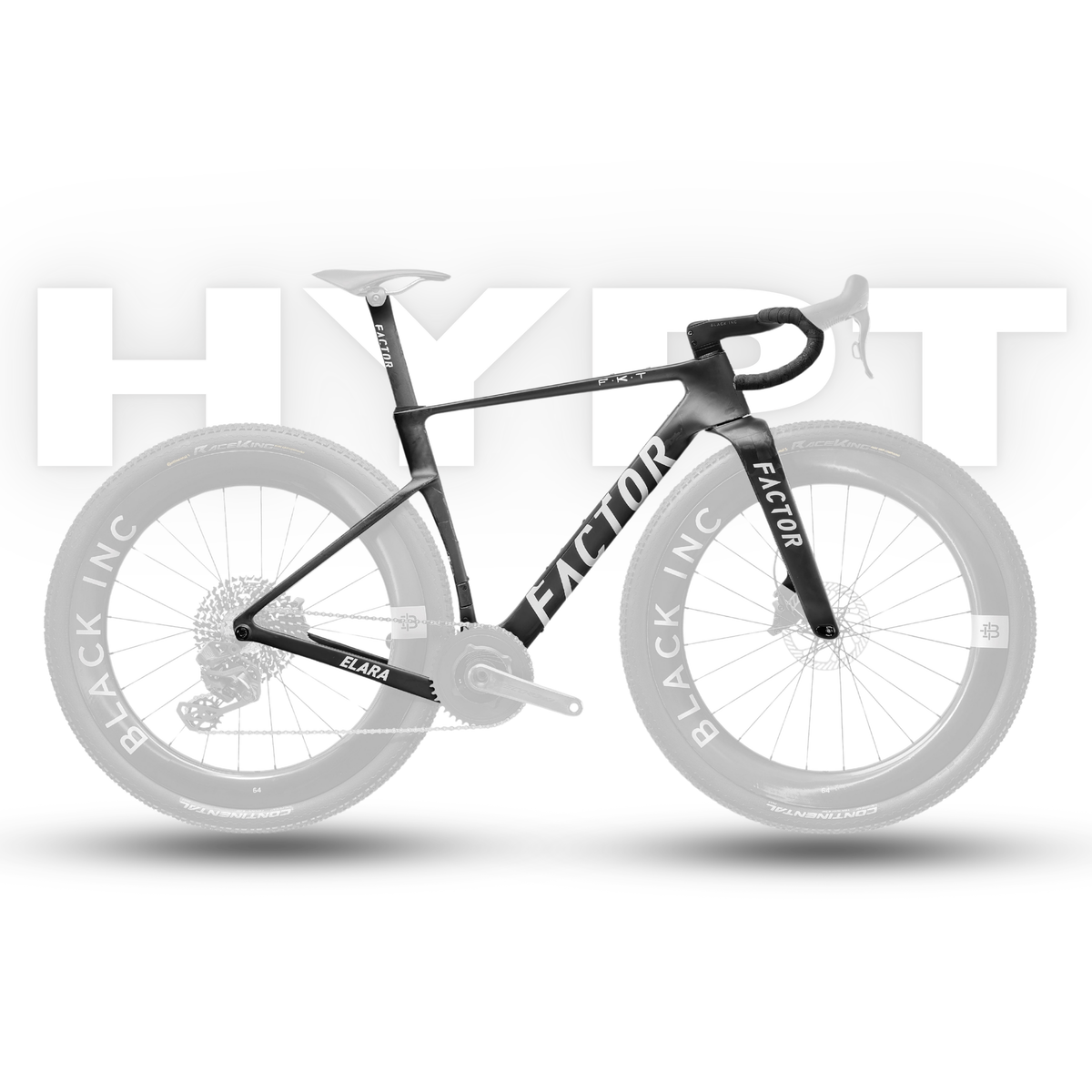

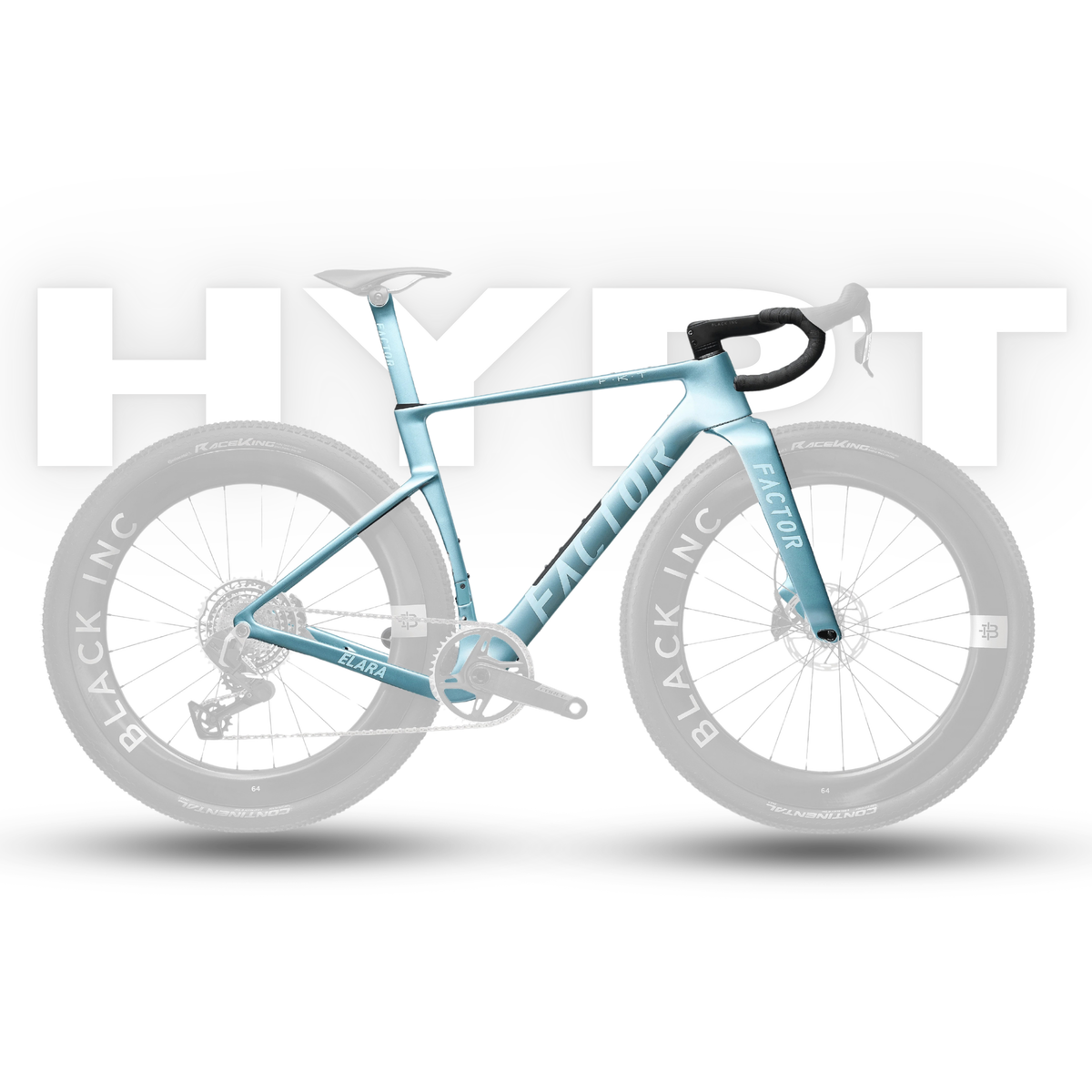

Factor Elara Premium Gravel Frameset
Every Factor bike is built to order. Please contact HYPT Bike Performance before placing your order to discuss your preferred specification, sizing and requirements, and to confirm the latest lead time.
The Factor ELARA Premium Package is the starting point for building a truly individual gravel race bike. Rather than committing to a complete build, this package gives you the core ELARA platform and leaves the drivetrain, wheels and finishing specification open to your requirements.
At its heart is Factor’s lightweight, true-monocoque carbon ELARA frame and full-carbon aero fork. Designed specifically for high-speed gravel racing, the ELARA combines road-derived race geometry with clearance for tyres up to 57 mm in a 1x configuration, giving you the ability to run the tyre volume required for rougher courses without sacrificing the responsive handling and efficiency expected from a race bike. Factor quotes a painted size-M frame weight of under 1,100 g, with aerodynamic development influenced by its ONE and OSTRO VAM road platforms.
The Premium Package includes the ELARA carbon seatpost and Black Inc AB07 integrated Aero Barstem, creating a clean, aerodynamic front end with internal cable routing. You can also select your preferred bottom bracket to suit the drivetrain you intend to run.
With 1x and 2x electronic drivetrain compatibility, UDH/direct-mount rear derailleur compatibility, a T47A internal threaded bottom bracket, integrated down-tube storage and two in-triangle bottle mounts, the ELARA Premium Package provides a highly capable foundation for a custom race build. It is equally suited to a SRAM, Shimano or Campagnolo drivetrain, allowing the finished bike to be configured around your preferred groupset, gearing and wheel choice.
At HYPT Bike Performance, we can take the ELARA Premium Package and build it around you. Whether you are looking for a lightweight race machine, a specific drivetrain and wheel combination, or a fully bespoke setup, we can discuss the component choices, sizing and final specification before your order is placed.
Spec Highlights
| Component | Specification |
|---|---|
| Frame | Factor ELARA true-monocoque carbon |
| Fork | Factor full-carbon aero fork |
| Seatpost | Factor ELARA carbon seatpost |
| Cockpit | Black Inc AB07 integrated Aero Barstem |
| Cockpit Upgrade | AB03 integrated Aero Barstem with extensions, +€210 |
| Bottom Bracket | T47A internal threaded, configuration selectable |
| Drivetrain Compatibility | Electronic 1x and 2x |
| Rear Derailleur Mount | UDH / direct mount |
| Maximum Tyre Clearance | Up to 57 mm / 2.2" with 1x |
| Frame Weight | Under 1,100 g, painted size M |
| Storage | Integrated down-tube storage |
| Bottle Mounts | Two in-triangle mounts plus top-tube feed port |
| Available Sizes | 49, 52, 54, 56, 58 and 61 |
Geometry
| Geometry | 49 | 52 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Stack (mm) | 515 | 535 | 555 | 580 | 605 | 625 |
| Reach (mm) | 382 | 390 | 399 | 407 | 417 | 427 |
| Head Tube Angle | 71.3° | 71.3° | 72.2° | 72.3° | 72.3° | 72.5° |
| Seat Tube Angle | 75° | 74.5° | 74.5° | 74.5° | 74° | 74° |
| BB Drop (mm) | 82 | 82 | 80 | 80 | 80 | 80 |
| Trail (mm) | 61.7 | 61.0 | 60.4 | 59.8 | 59.8 | 59.8 |
| Fork Offset (mm) | 56 | 56 | 51 | 51 | 51 | 51 |
| Chainstay (mm) | 420 | 420 | 420 | 423 | 425 | 425 |
| Wheelbase (mm) | 1001 | 1015 | 1017 | 1035 | 1055 | 1072 |
